DC01 Carbon steel plate

DC01 is a cold-rolled steel plate, as defined in the national standard GBT 5213-2008 for cold-rolled low-carbon steel plates and steel strips.

E-mail

Contact us

Detailed introduction

Thickness	0.1mm-3mm
Width	100mm-2000mm
Length	1m-12m，According to your requirements

COMMON STEEL GRADES

DC01 (Tensile strength 270-410 MPa) - This grade can be used for simple forming processes, such as bending, embossing, flanging and stretching.

DC02/DC03 - These grades are suitable for forming requirements such as deep drawing and difficult profiles.

DC04 - This quality can meet the requirements of high deformation.

DC05/06/07 - These deep drawing quality grades are suitable for higher forming and deformation requirements. The following are their mechanical properties.

Steel Specifications	Yield strength	Tensile strength	Extend A80mm	Plastic strain ratio r90	Strain hardening index n90
DC01	140-280MPa	270-410	≥28
DC02	140-240MPa	270-370MPa	≥34	≥1.4
DC03	120-210MPa	270-350MPa	≥38	≥1.8	≥0.18
DC04	120-180MPa	270-350MPa	≥40	≥2.0	≥0.20

GB/T5213-DC01 Cold Rolled Coil
C	Mn	P	S	Al
≤0.15	≤0.60	≤0.100	≤0.050	≥0.02
Yield Strength Mpa	Tensile Strength Mpa	Elongation(Thickness)
≤280	270-410	≥28
GB/T5213-DC03 Cold Rolled Coil
C	Mn	P	S	Al
≤0.10	≤0.45	≤0.045	≤0.045	≥0.02
Yield Strength Mpa	Tensile Strength Mpa	Elongation(Thickness)
≤240	270-370	≥34
GB/T5213-DC04 Cold Rolled Coil
C	Mn	P	S	Al
≤0.08	≤0.40	≤0.030	≤0.030	≥0.02
Yield Strength Mpa	Tensile Strength Mpa	Elongation(Thickness)
≤210	270-350	≥38
GB/T5213-DC05 Cold Rolled Coil
C	Mn	P	S	Al
≤0.06	≤0.35	≤0.025	≤0.025	≥0.015
Yield Strength Mpa	Tensile Strength Mpa	Elongation(Thickness)
≤180	270-330	≥40
GB/T5213-DC06 Cold Rolled Coil
C	Mn	P	S	Al
≤0.02	≤0.30	≤0.020	≤0.020	≥0.015
Yield Strength Mpa	Tensile Strength Mpa	Elongation(Thickness)
≤170	270-330	≥41
GB/T5213-DC07 Cold Rolled Coil
C	Mn	P	S	Al
≤0.01	≤0.25	≤0.020	≤0.020	≥0.015
Yield Strength Mpa	Tensile Strength Mpa	Elongation(Thickness)
≤150	250-310	≥44

The characteristics of cold-rolled coil

1. High strength: 20% stronger than hot-rolled steel

2. High surface quality - smooth and easy to paint

3. Strict tolerances

4. Good formability

5. Poor toughness and weldability

The uses of cold-rolled steel coils

Cold-rolled steel coils are typically used in applications that require precise tolerances, high strength and high surface finish quality. It is also the base metal galvanized steel coil. The following are its applications:

1. Automotive parts, such as corrosion-resistant automotive parts, etc.

2. Light industry, such as home appliance shells, civil chimneys, kitchenware, etc.

3. Construction uses, such as roof panels, roof grilles, etc.

4. The base material is color-coated steel, galvanized steel or aluminized zinc steel.

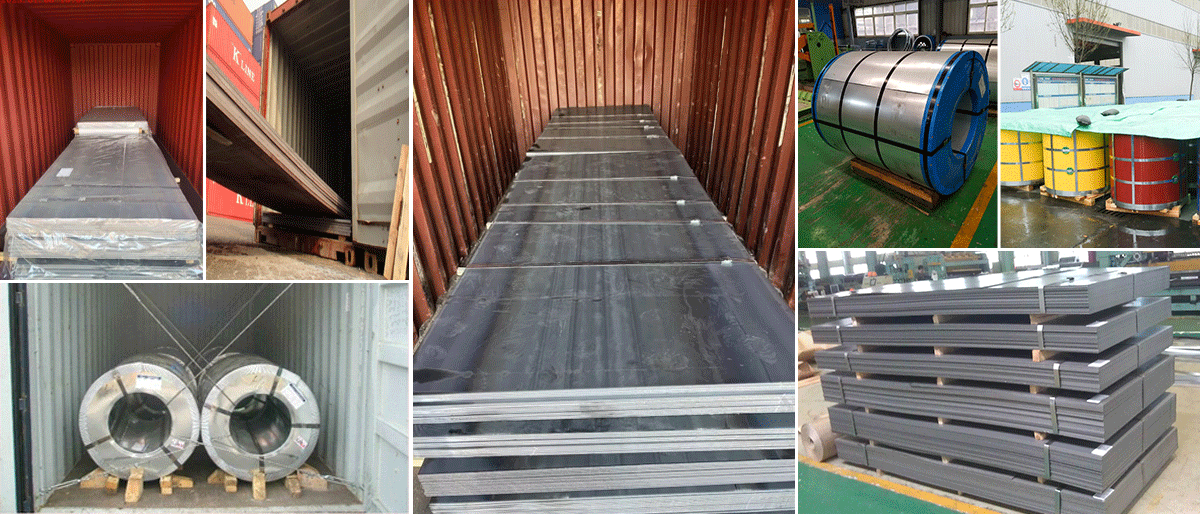

Packaging and shipment
